FlowWall

Video editing node

Purpose: Process uploaded videos or node output. After creating the node, select a loop, clip, score, or composition function.

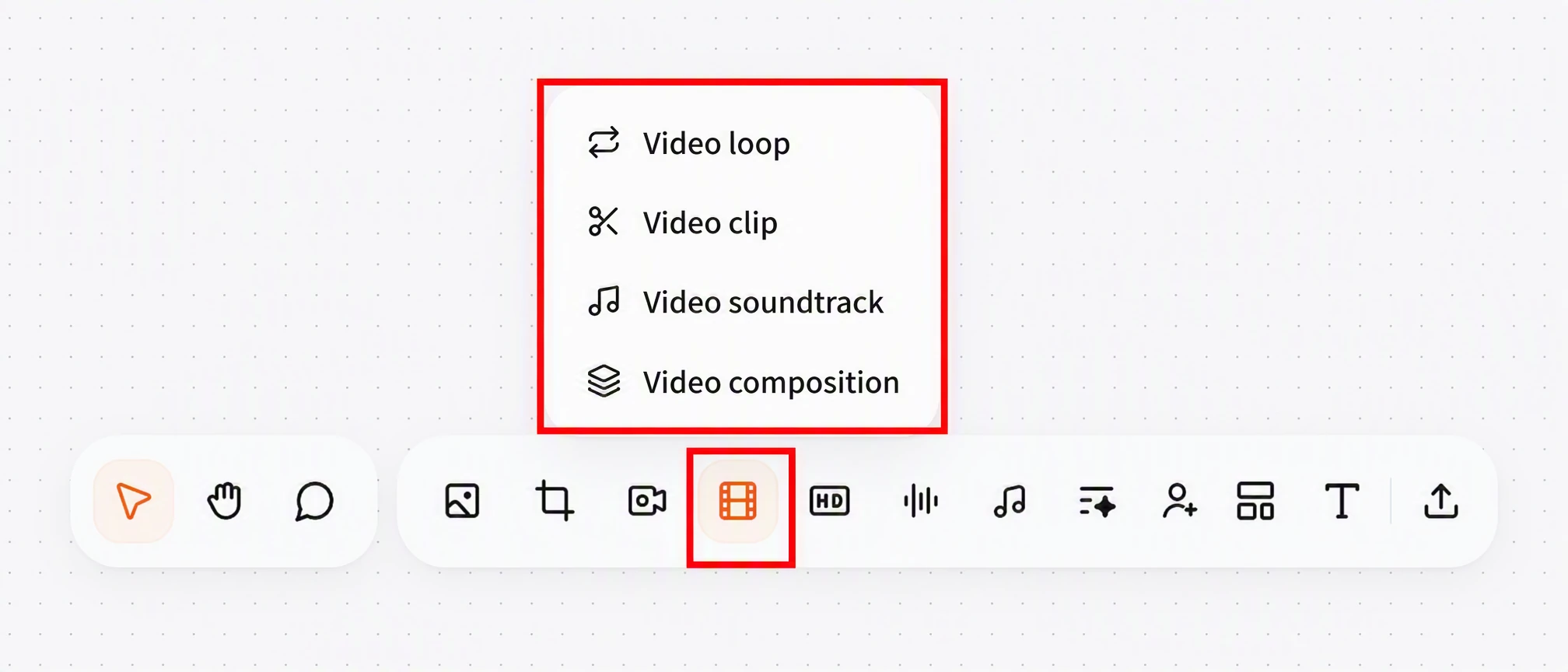

Open the video editing function menu
Video loop

Purpose: Reconstruct or cut the beginning and ending transitions, and output a loop video that can be played continuously.

01

Open the video editing nodeVideo loop

02

Connect the video you want to loop and choose the loop clip or loop method.

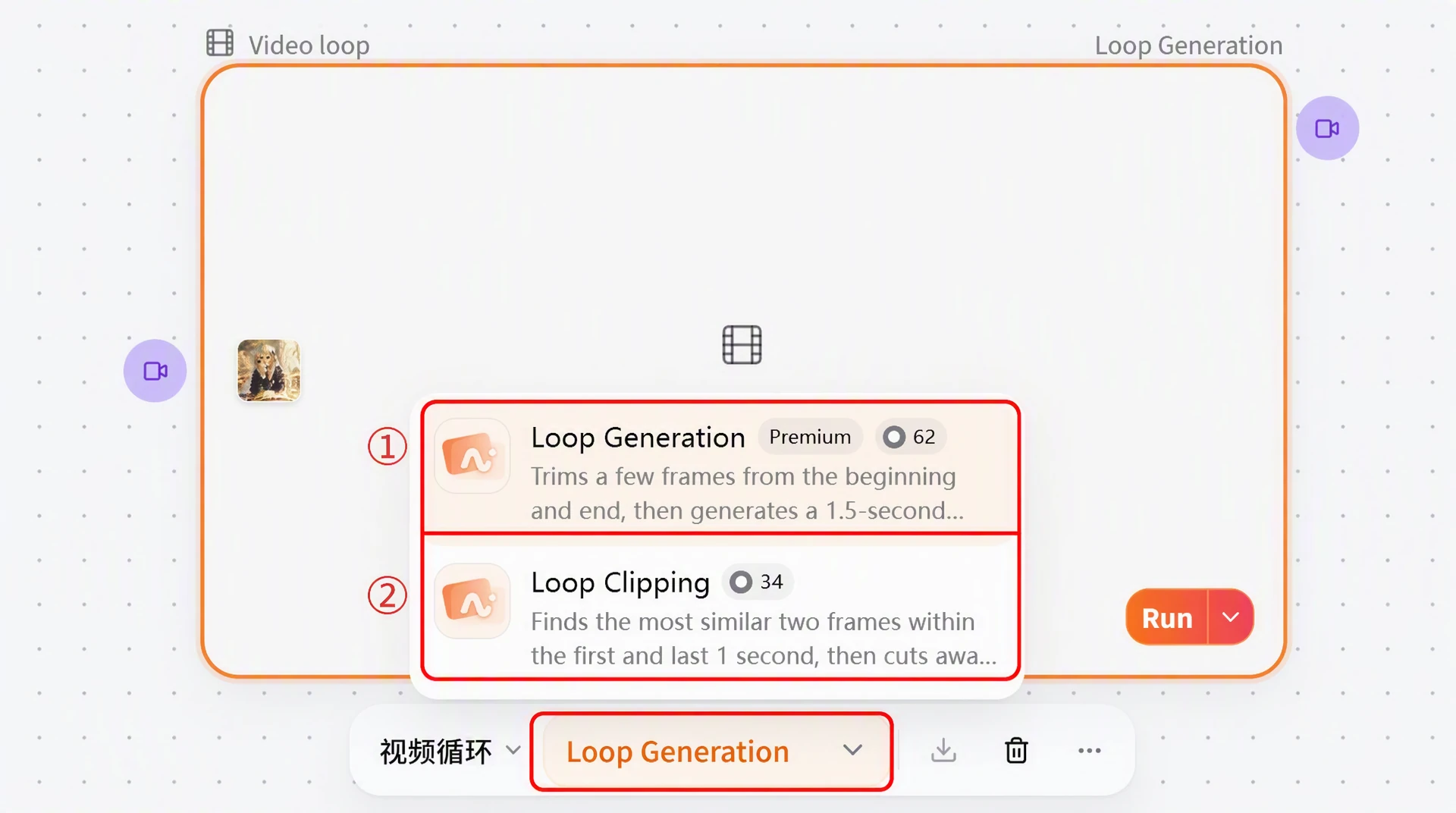

Select Video loop mode
  1. 01Loop Generation: Supplementally generate transition pictures to make the connection between the beginning and the end more natural.
  2. 02Loop Clipping: Cut similar pictures at the beginning and end to form a seamless loop
03

Run after confirming the settings.

Video clip

Purpose: retain valid time periods and remove invalid or failed generation segments.

01

Open the video editing nodeVideo clip

02

Connect the videos that need to be edited, and adjust the length and aspect ratio of the clips.

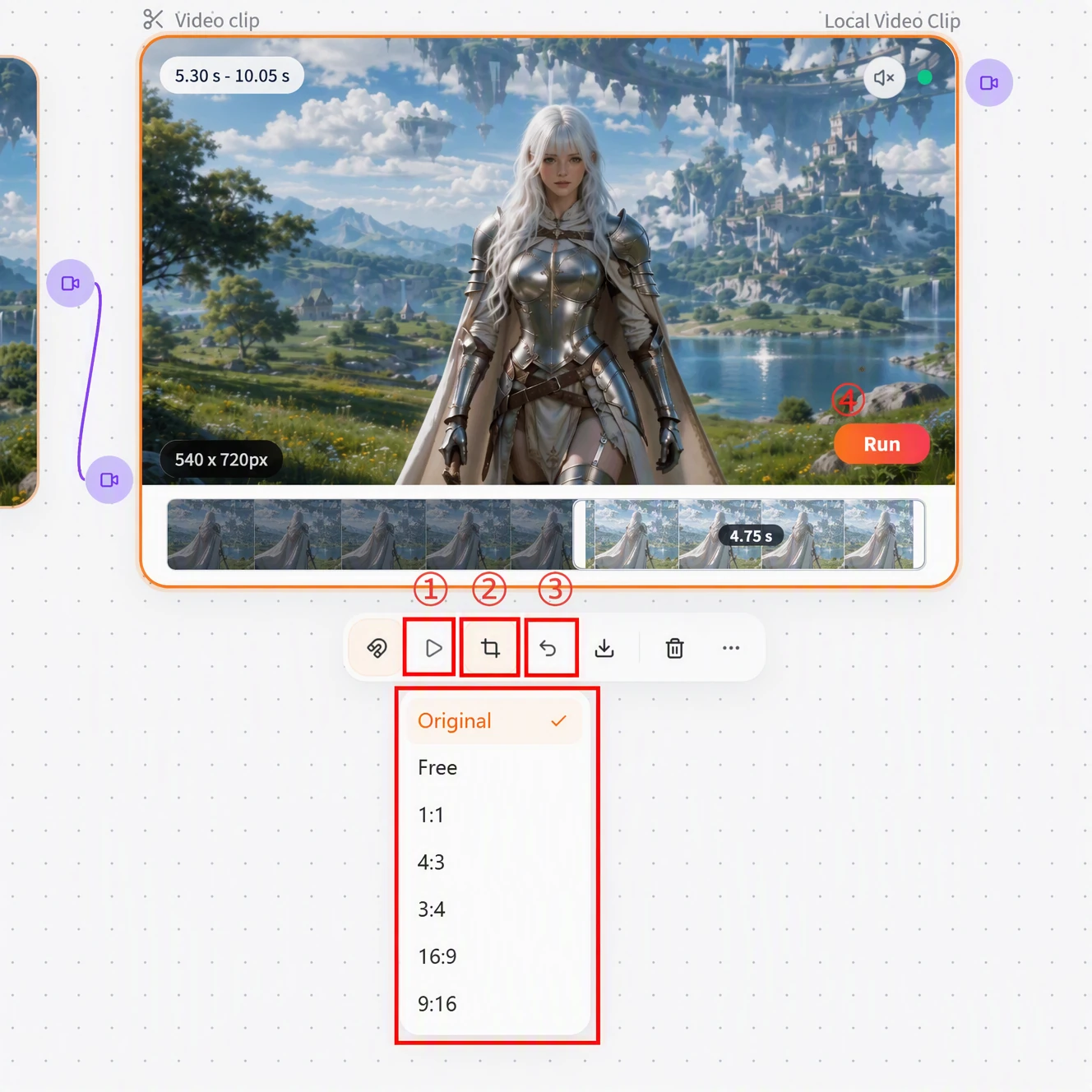

Video clip Interface and Tools
  1. 01Play: Preview the current clip
  2. 02Aspect Ratio: Crop the image to the target aspect ratio
  3. 03Undo: Undo the previous step
  4. 04Cancel/Confirm: Give up or save this clip
03

Use the play, undo and other tools below the node to preview or adjust the editing results.

04

Run after confirming the settings.

  1. DescriptionClickRunGenerate clipping results.

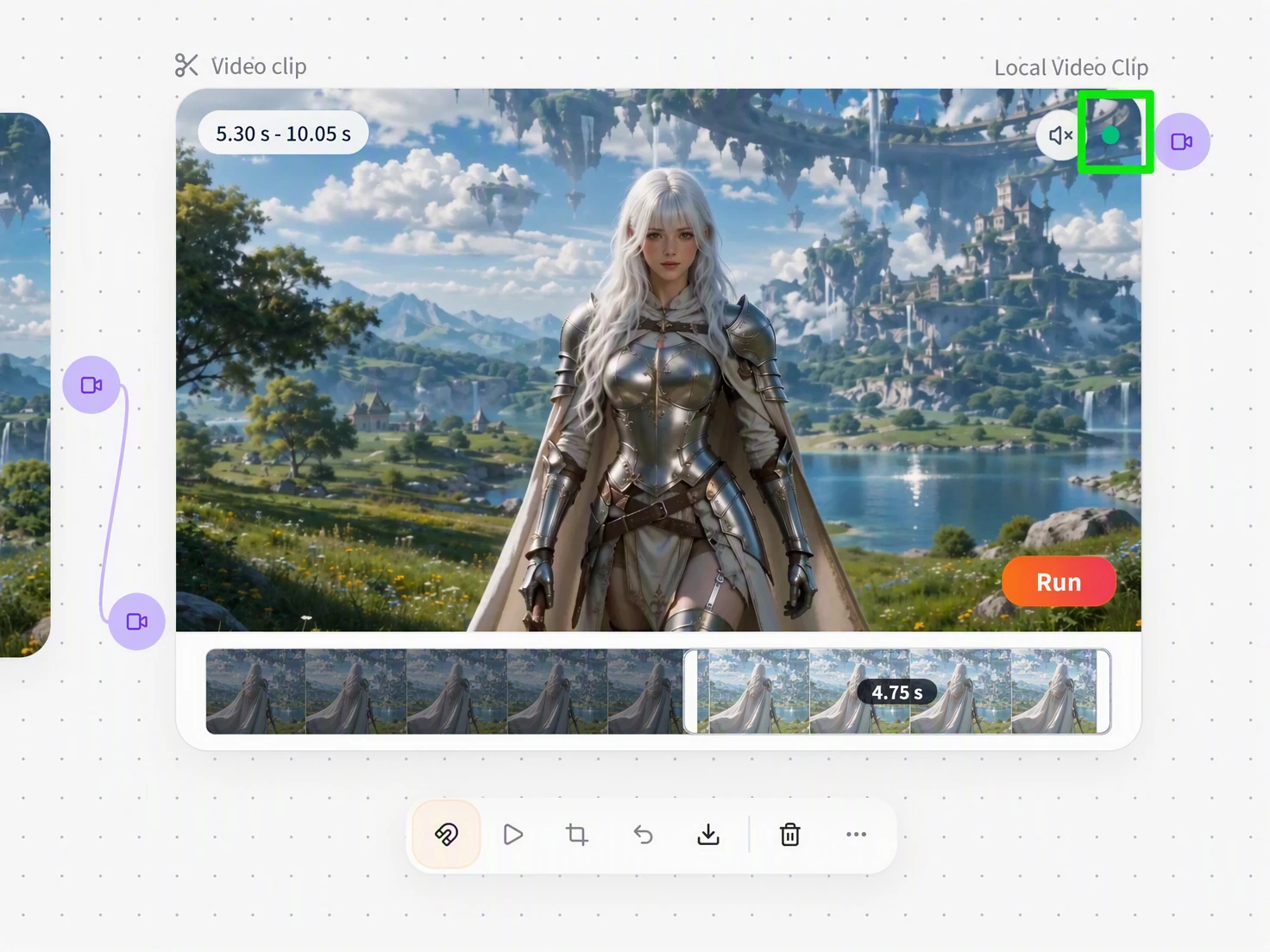

View Video clip completion status
  1. DescriptionYou can judge whether it is completed by the status dot in the upper right corner of the node: yellow means not completed, green means completed.
Video soundtrack

Purpose: Write background music or sound effects track for video.

01

Open the video editing nodeVideo soundtrack

02

Connect videos that require a soundtrack.

03

Adjust music or sound effects settings.

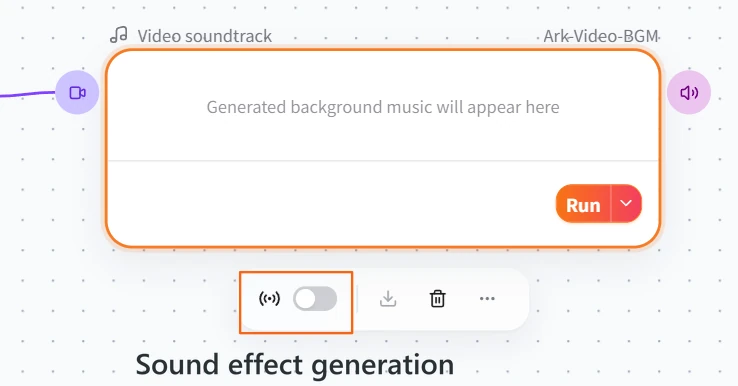

Enable video sound effect generation
04

Run after confirming the settings.

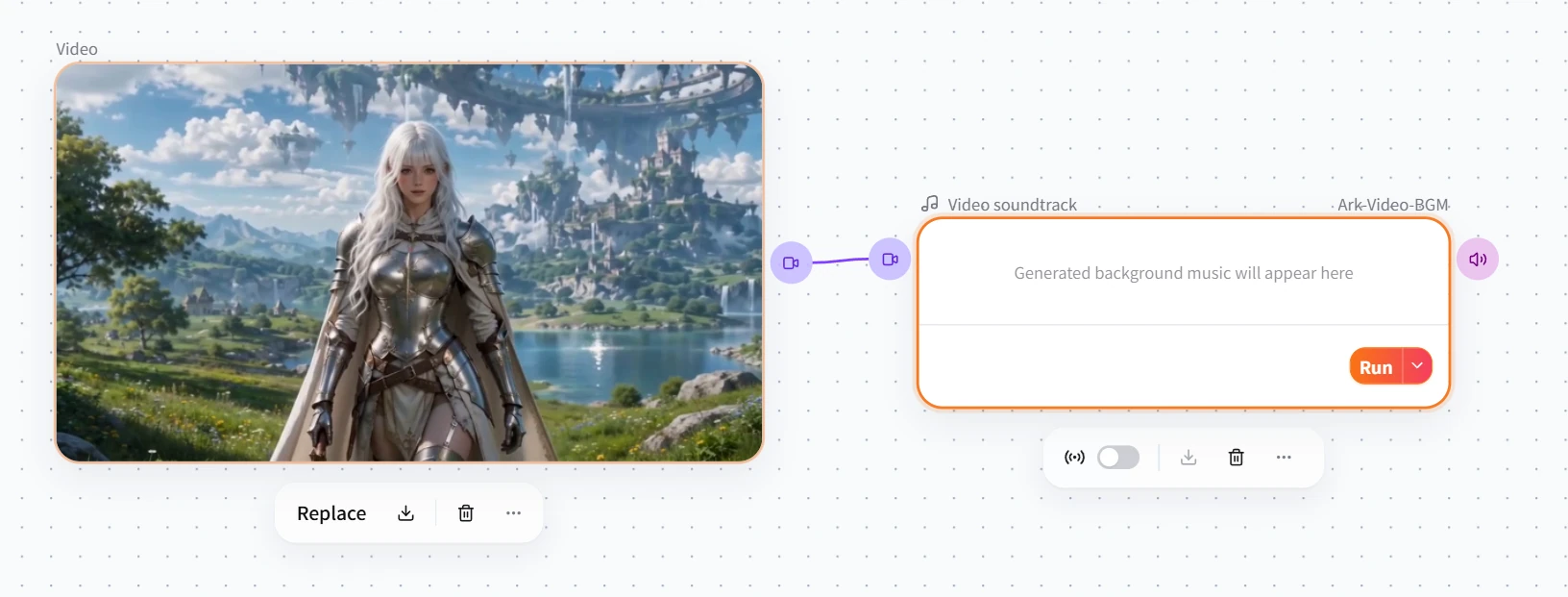

Connect audio to video
Video composition

Purpose: Merge multiple video and audio clips according to timeline.

01

Open the video editing nodeVideo composition

02

Add video or audio clips that need to be synthesized.

03

Adjust clip order and timing.

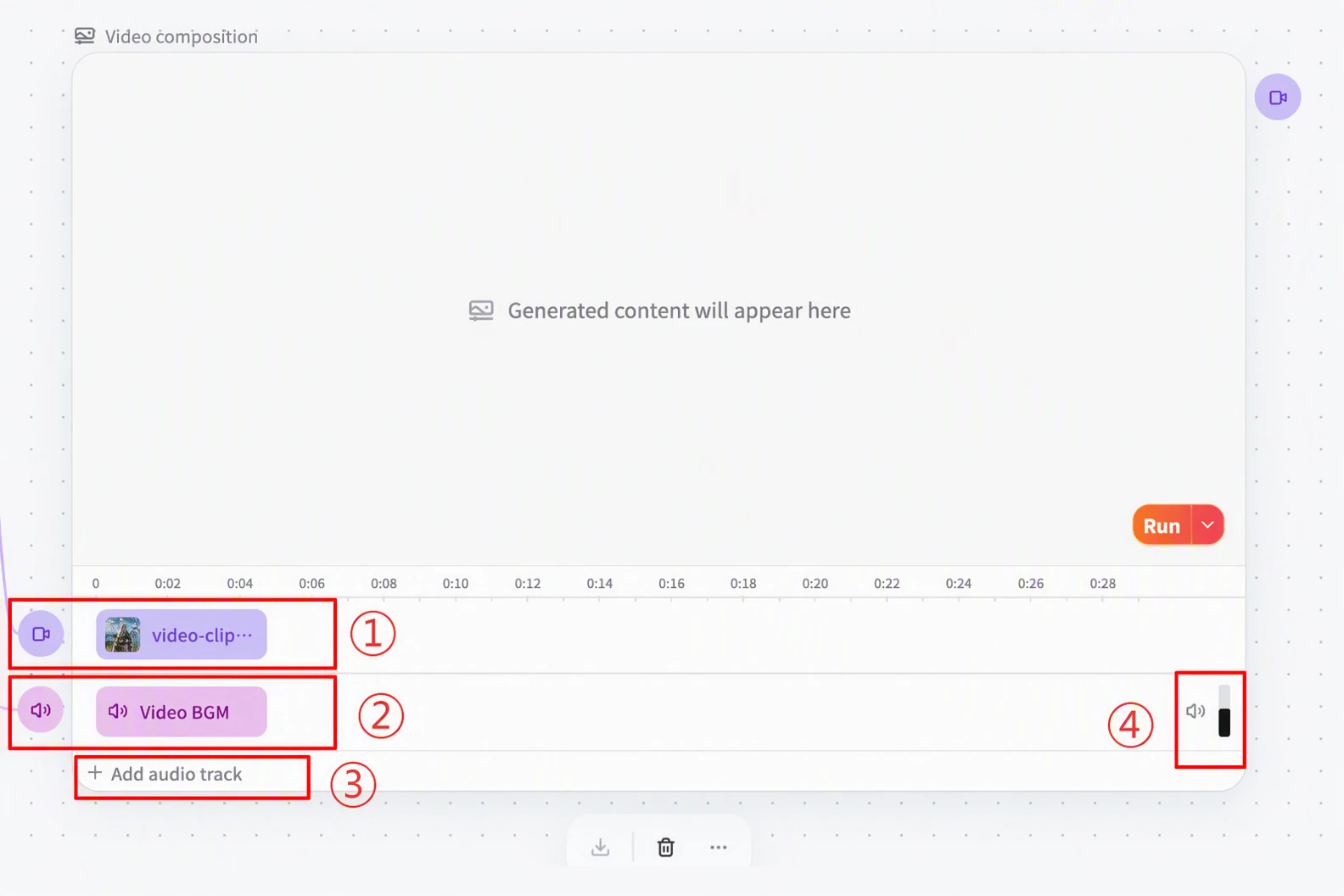

Video composition track
  1. 01Video Tracks: Place and Order Video Clips
  2. 02Audio track: place background music or sound effects
  3. 03Add audio track: add a new audio track
  4. 04Track volume: Drag to adjust the volume
04

Run after confirming the settings.

  1. DescriptionClickRunGenerate synthetic results.

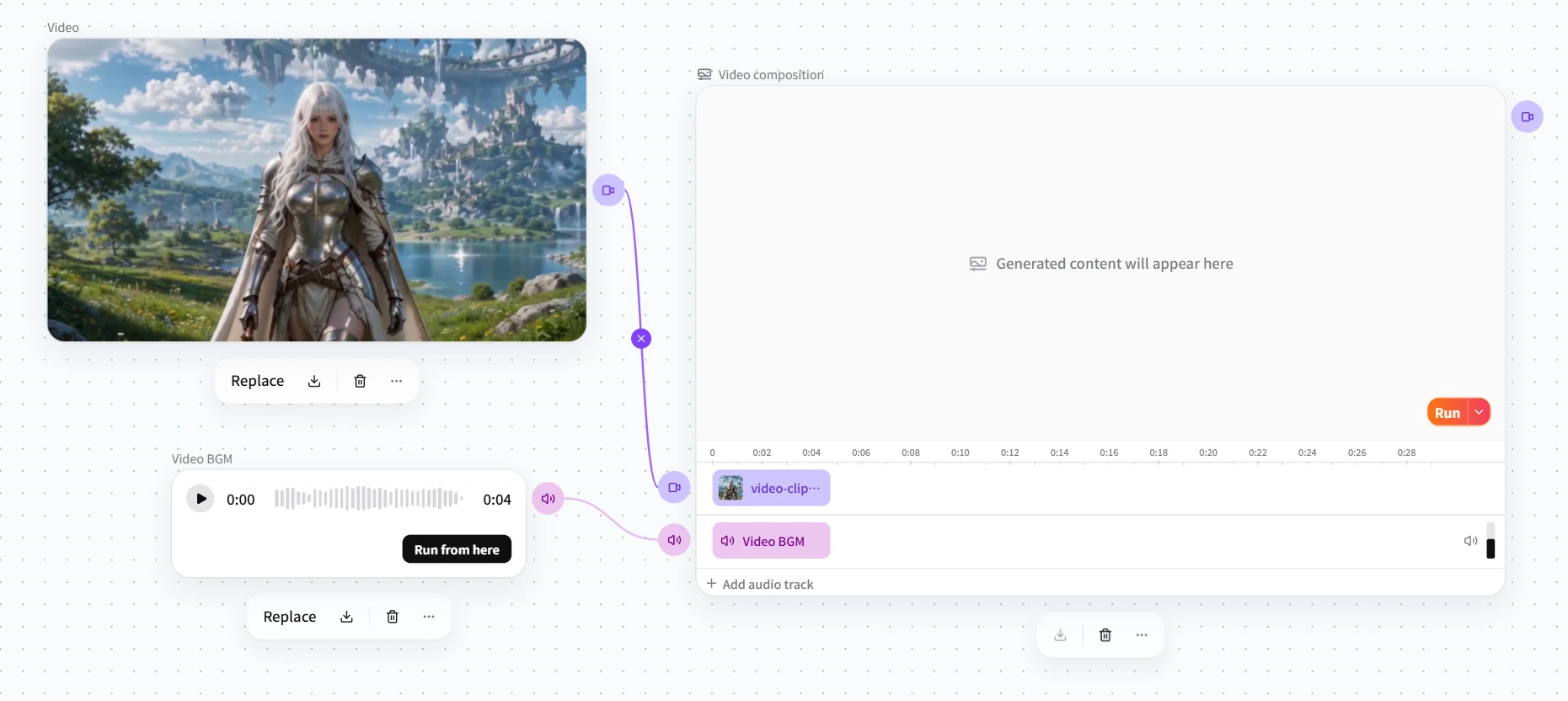

Run and view Video composition results
