Subtitles node ✨
Recognize lines in video or audio, generate animated Subtitles with timeline, or directly import ready-made Subtitles files. Subtitles will burn into the slice when connected to a compositing node.

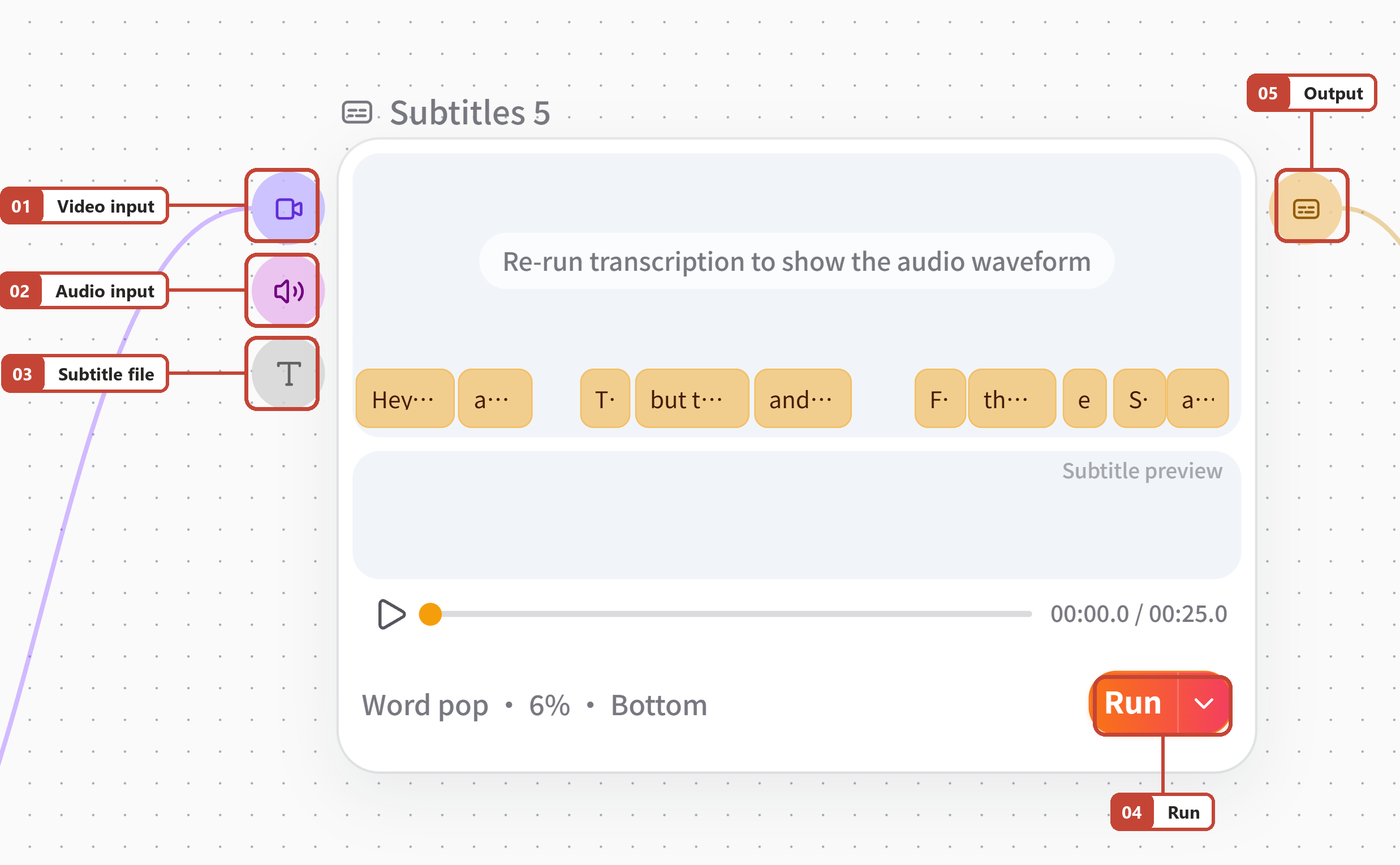

Add a Subtitles node, connect the video or audio to the corresponding input port, select the language and run. When there is already a Subtitles file, clickUpload Subtitles fileDirect import, supports .srt and .vtt.
- 01Video input port: Connect the video and run it to recognize the lines in it.
- 02Audio input port: Connect here when there is only audio.
- 03Subtitles file input port: If you already have .srt / .vtt Subtitles, you can import it directly without consuming points.
- 04Run: Start recognition. During the process, extracting audio tracks, preparing and recognizing will be displayed in sequence.
- 05Output port: Connect the identified Subtitles to the synthesis node.
The priorities of the three input ports are video, audio, and text. The language is automatically detected by default. If the language is known, specifying it directly can improve the accuracy. During the running process, the node will display the audio track extraction, preparation and recognition in sequence. After completion, the preview can be played in the node.

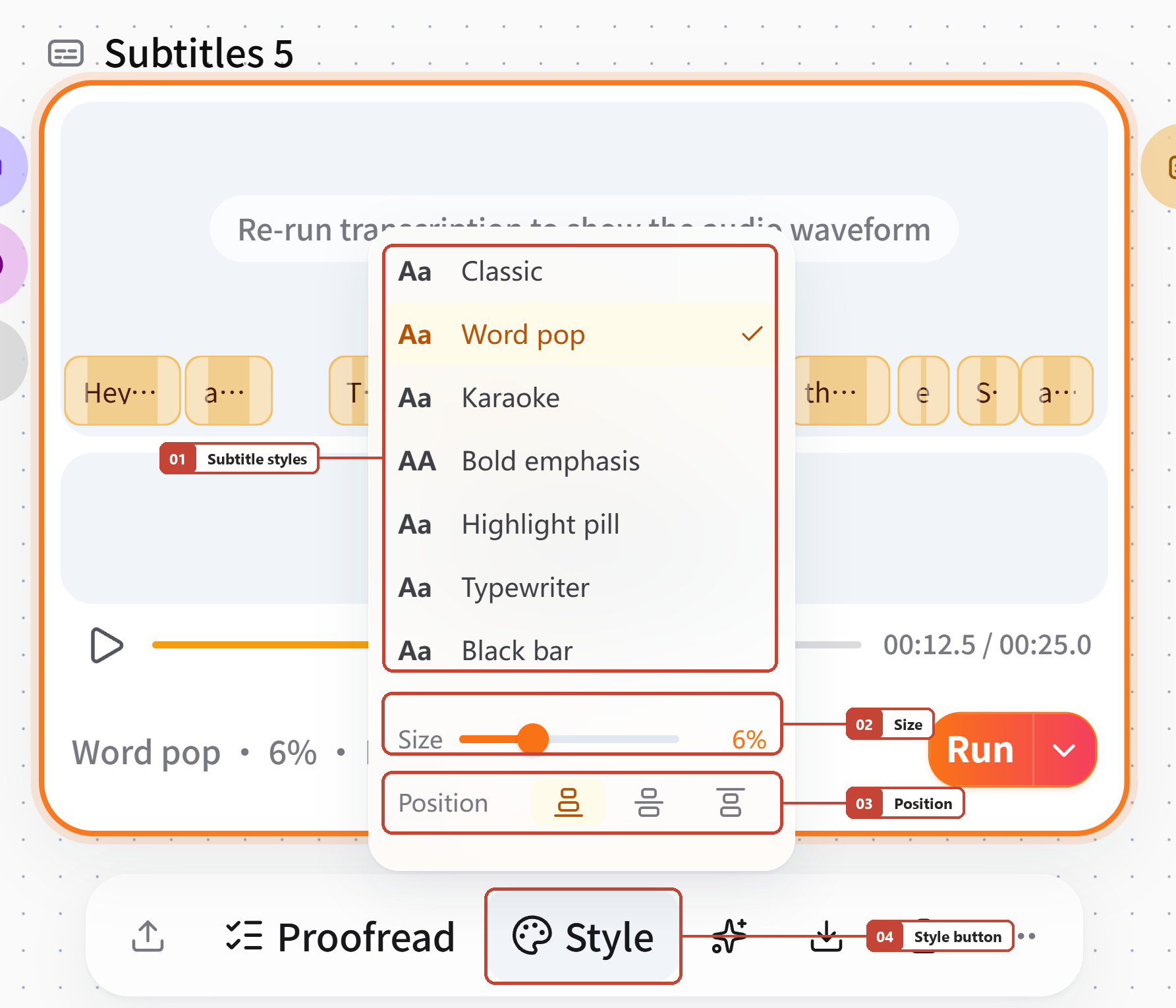

Select the Subtitles style, font size and position at the bottom of the node. The font size is set as a percentage of the screen height, ranging from 3 to 12. For short videos, the recommended size is 9 to 12 for full-screen large fonts; the position can be selected from the top, center, or bottom.
- 01Subtitles style: seven animation styles, the currently selected one will be ticked.
- 02Font size: Set according to the percentage of the screen height. The large font size that fills the short video screen can be adjusted to 9 or above.
- 03Position: Subtitles appears at the top, center, or bottom of the screen.
- 04Style button: The entry on the node action bar, you can come back and adjust it at any time.
| style | Effect | Suitable for the scene |
|---|---|---|
| pop up word by word | appear word by word | Short video oral broadcast |
| Karaoke | Color changes word by word according to reading progress | Lyrics and reading content |
| Golden sentence emphasizes | White text with yellow keywords | Use with keyword highlighting |
| highlight word block | Keywords with background color block | Emphasize selling points and numbers |
| typewriter | Type word for word | Narrative and narration |
| Simple whole sentence | The whole sentence is displayed, the style is restrained | Formal content |
| Black background strip | The black bottom strip supports the text, so long sentences are not blurry. | Formal content and long sentences |

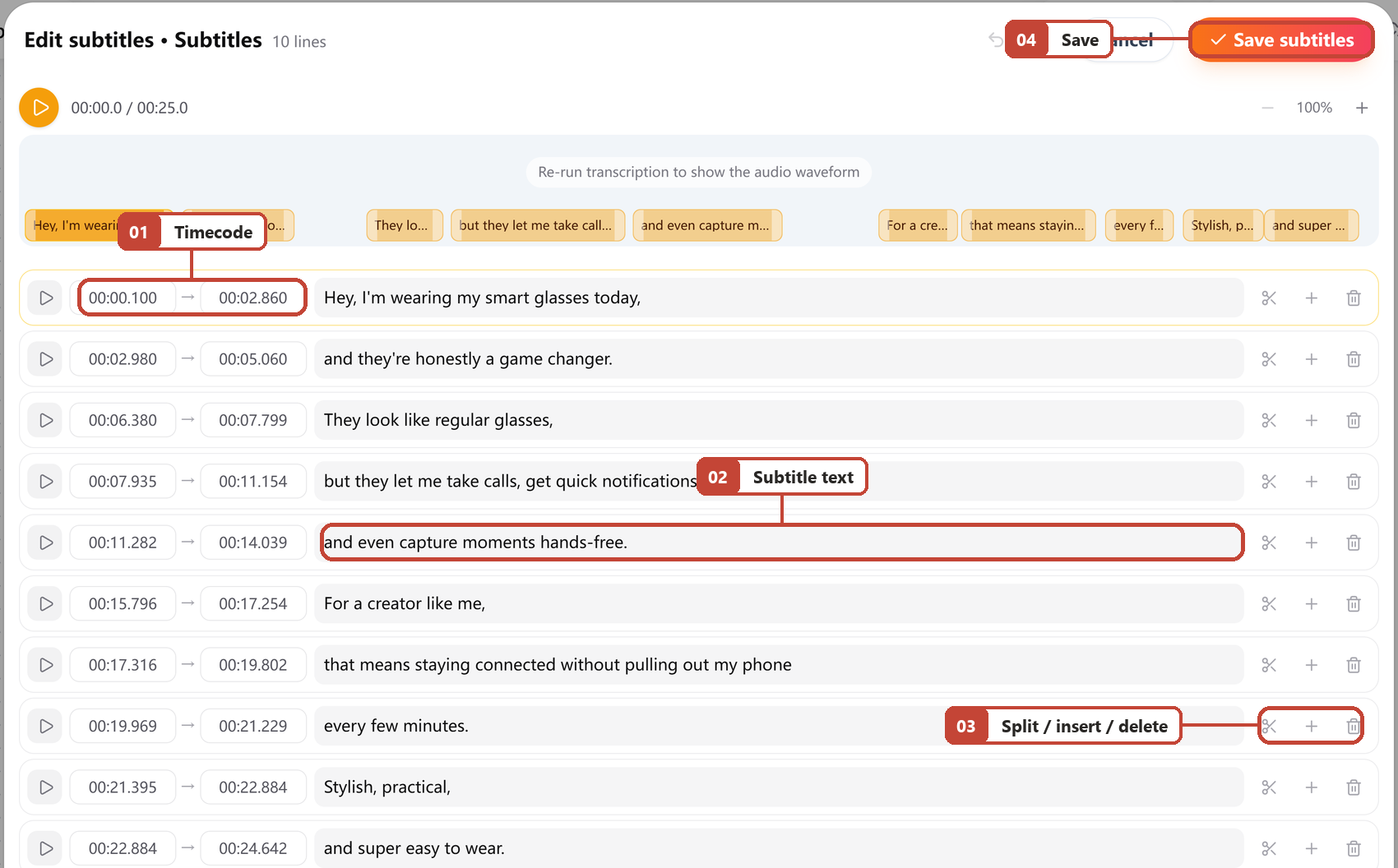

ClickEdit SubtitlesText and time can be modified one by one, and split, inserted and deleted. on the node action barHighlight keywordsIt will automatically pick out the key words in each sentence and highlight them. The best effect is to match the golden sentence emphasis style.
- 01Time code: The start and end time of each Subtitles can be modified directly.
- 02Subtitles text: The recognition results can be rewritten item by item.
- 03Split, insert and delete: Split one line into two, insert a new one below, or delete the extra one.
- 04Save Subtitles: Save after modification, the node and downstream synthesis will be updated synchronously.

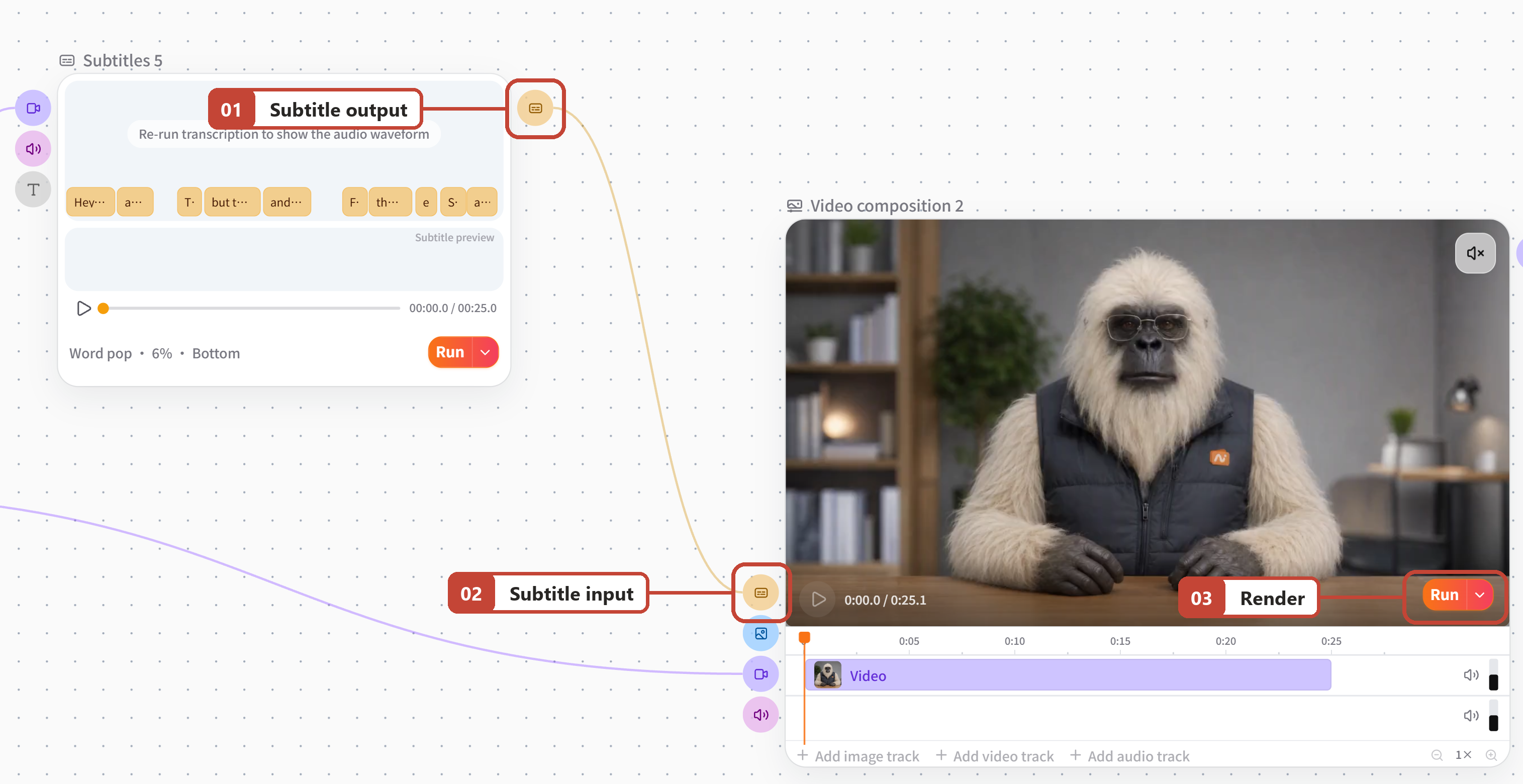

Connect the output of the Subtitles node to the Subtitles input port of the synthesis node, and the previewed and exported films will have animated Subtitles.
- 01Subtitles output port: The product is Subtitles data, not a video file.
- 02The Subtitles input port of the synthesis node: After being connected, the preview and finished film will bring animated Subtitles.
- 03Generate a video: After the synthesis node is run, the video of the burned Subtitles is output.
