Image generation node

Basic configuration

Purpose: Generate pictures based on text descriptions or reference materials.

01

Add a picture node, select the model and set parameters. Different models support different parameters, please refer to01.2 Image model and common parameters。

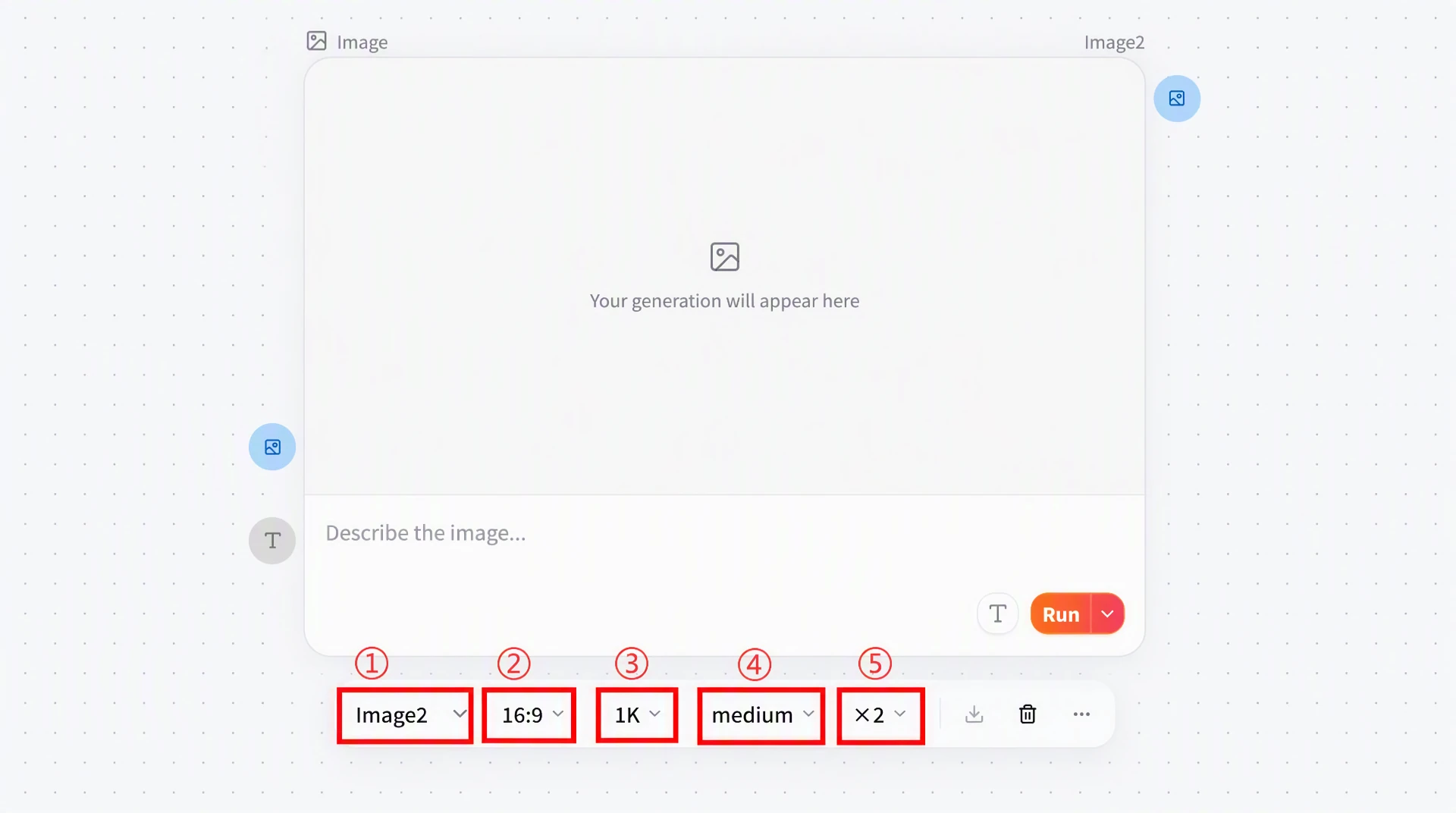

Model and parameters of image node
  1. 01Image model: Click to switch to generate model
  2. 02Aspect ratio: Choose landscape, portrait or square
  3. 03Resolution: Set the output resolution
  4. 04Build quality: select quality level
  5. 05Generation quantity: Set how many pictures to generate at one time
02

Enter a text description, or link a reference image.

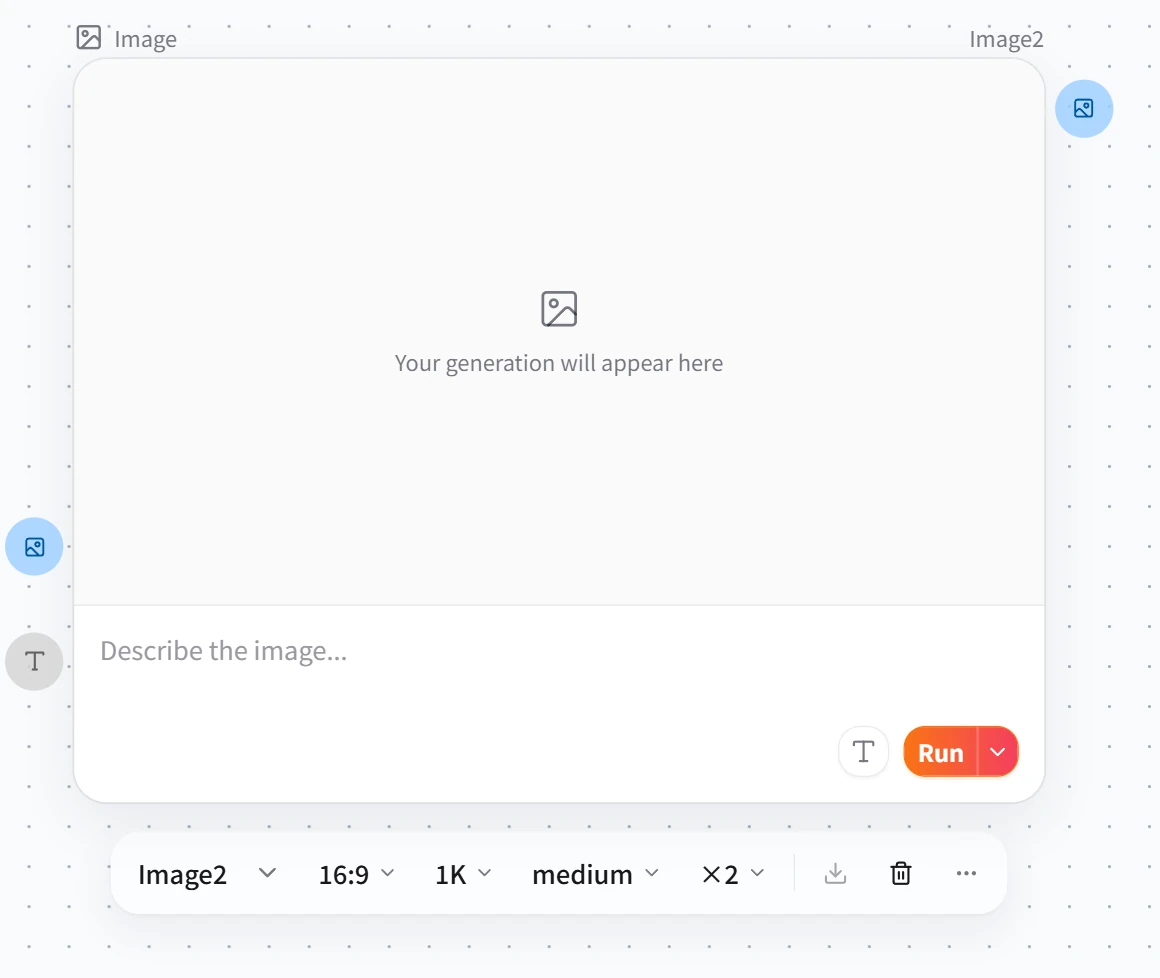

Enter the prompt word in the picture node
  1. DescriptionWhen the prompt word is short, you can directly enter it in the input box of the picture node.
03

Select the model and set the parameters shown in the node.

  1. DescriptionClick the parameter item below the image node to adjust.
04

Clickrun, to view the generated results.

05

Click on the image node to view the generation history of the node above the node.

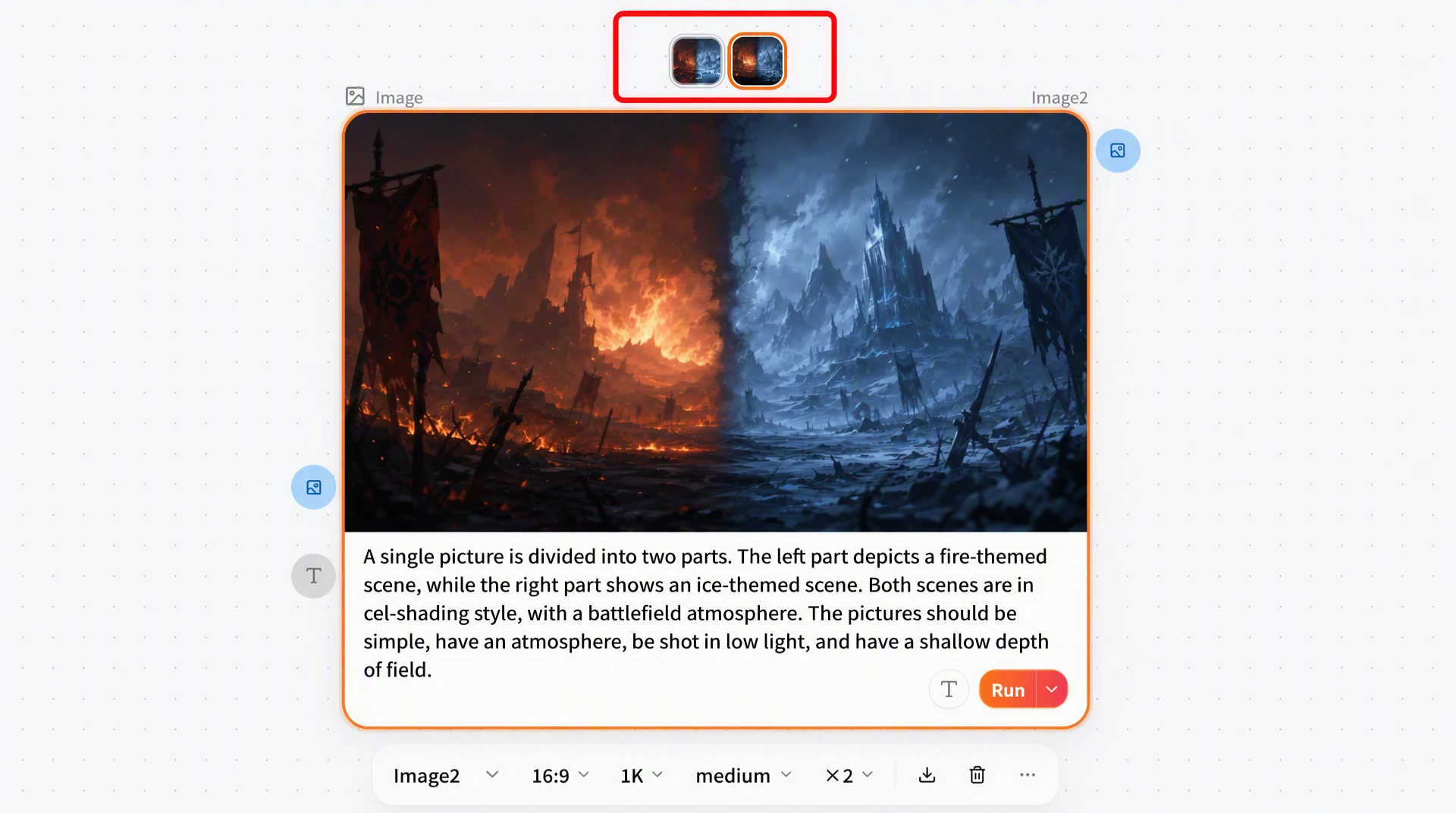

View Image generation history
  1. DescriptionClick to generate history records to switch to view different results.
  2. DescriptionAfter the generation is completed, double-click the image to enlarge it.

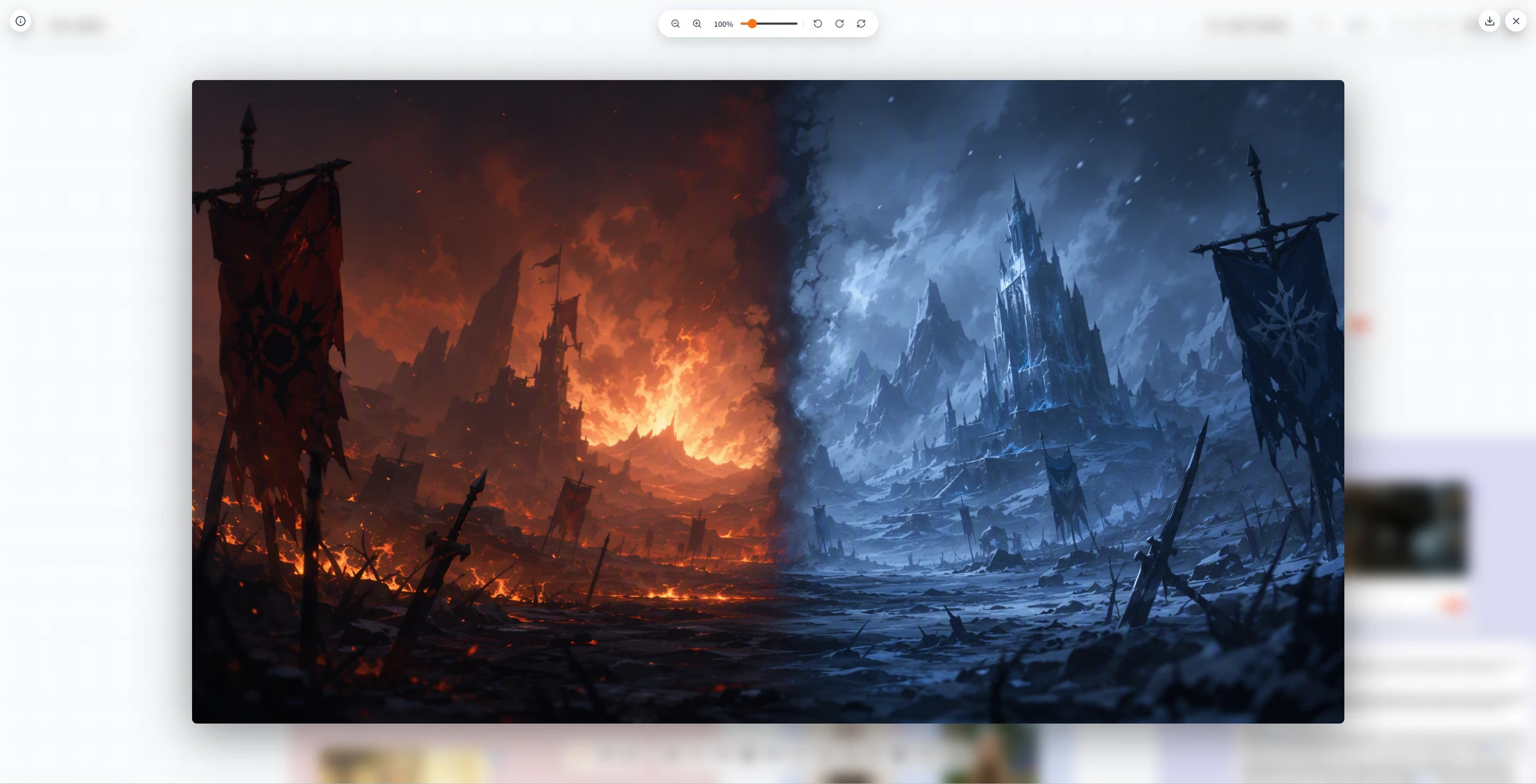

Zoom in to view the generated image
Image model parameter matrix
DATA TABLEImage model parameters
modelWhat is suitable for generatingresolutionSingle generation quantityOther parameters
MidjourneyCreative aesthetics and stylized pictures are suitable for pictures that pursue artistic sense, visual style and compositional expression.1K、2K4 picturesThree model versions available /
NanoBanana ProImage modification and detail repair, suitable for repairing local errors such as fingers and toes.1K、2K、4K1–4 sheetsBased on the current interface
NanoBanana 2 LiteQuickly generate and edit, suitable for rapid trial and error and iteration.1K1–4 sheetsThere are many width and height ratios to choose from /
Image2High-quality Image generation, suitable for text posters and pictures with high requirements on picture style.1K、2K、4K1–4 sheetsSelectable generated quality /
Seedream 4.5Multi-image editing, text layout, high fidelity and high consistency, suitable for multi-material editing.2K、4K1–4 sheetsBased on the current interface
Seedream 5.0 ProQuality and detail first, for finer generation and more accurate Image editing.1K、2K1–4 sheetsBased on the current interface
Seedream 5.0 LiteLow-cost and fast generation, suitable for sketching, trial and error and quick solution.2K、4K1–4 sheetsBased on the current interface
